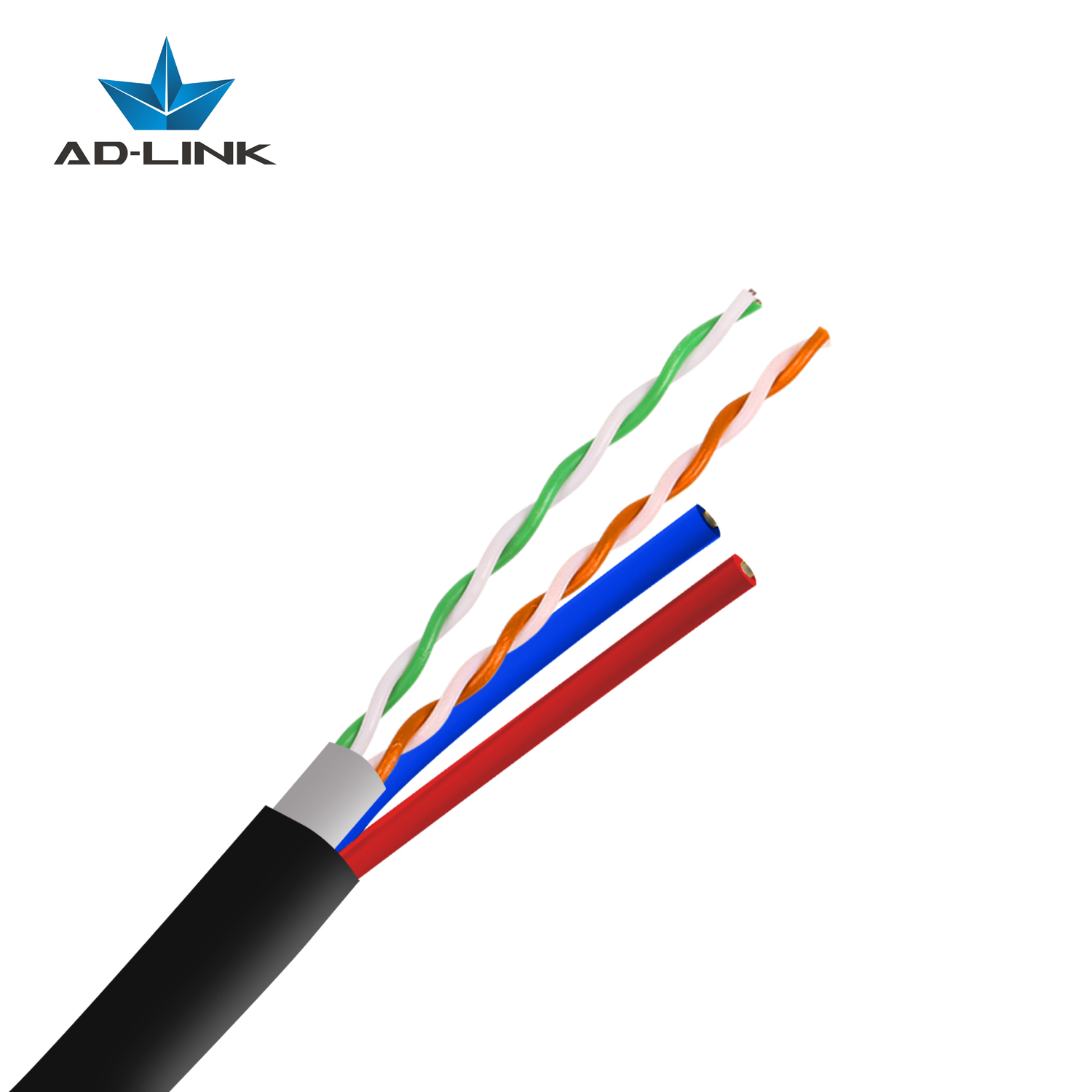

Combine Cable Outdoor UTP Cable + Power Cable 300m
UTP Outdoor Cable with 2 core power cable is perfect for providing fast data transmission as well as a power supply.
UTP CABLE
- Conductor size : 24AWG
- Conductor Material : Pure Copper
- No. of Conductor : 2P
- Insulator Material : HDPE
- Insulator Thickness : 0.18mm
- Jacket Material : PVC
- Jacket Thickness : 0.55-4.0mm
POWER CABLE
- Conductor Material : Pure Copper
- Nominal crossing area : 2*0.5mm
- Insulator Material : HDPE
- Insulator Thickness : 0.6mm
- Outer Jacket Material : HDPE
- Outer Jacket Thickness : 0.6-6.0mm
Outdoor FTP CAT6 4P Twisted Pair Cable 305 Meters/Wooden Reel (1000ft)
Horizontal twisted pair cable for digital communication. Supports all applications designed for super five or newer cabling systems.
- Conductor size : 24AWG
- Conductor Material : CCA
- No. of Conductor : 4P
- Insulator Material : HDPE
- Insulator Thickness : 0.2mm
- Inner Jacket Material : PVC
- Shield : AL/Mylar
- Filler : PE CROSS
- Inner Jacket Thickness Outer : 0.55mm
- Jacket Material : HDPE
- Outer Jacket Thickness : 0.6mm
- Outer Jacket External O.D. : 7.5mm
- Outer Jacket Flammability text : CMR
- Outer Jacket Thickness : 0.66mm
- Outer Jacket Color : Black

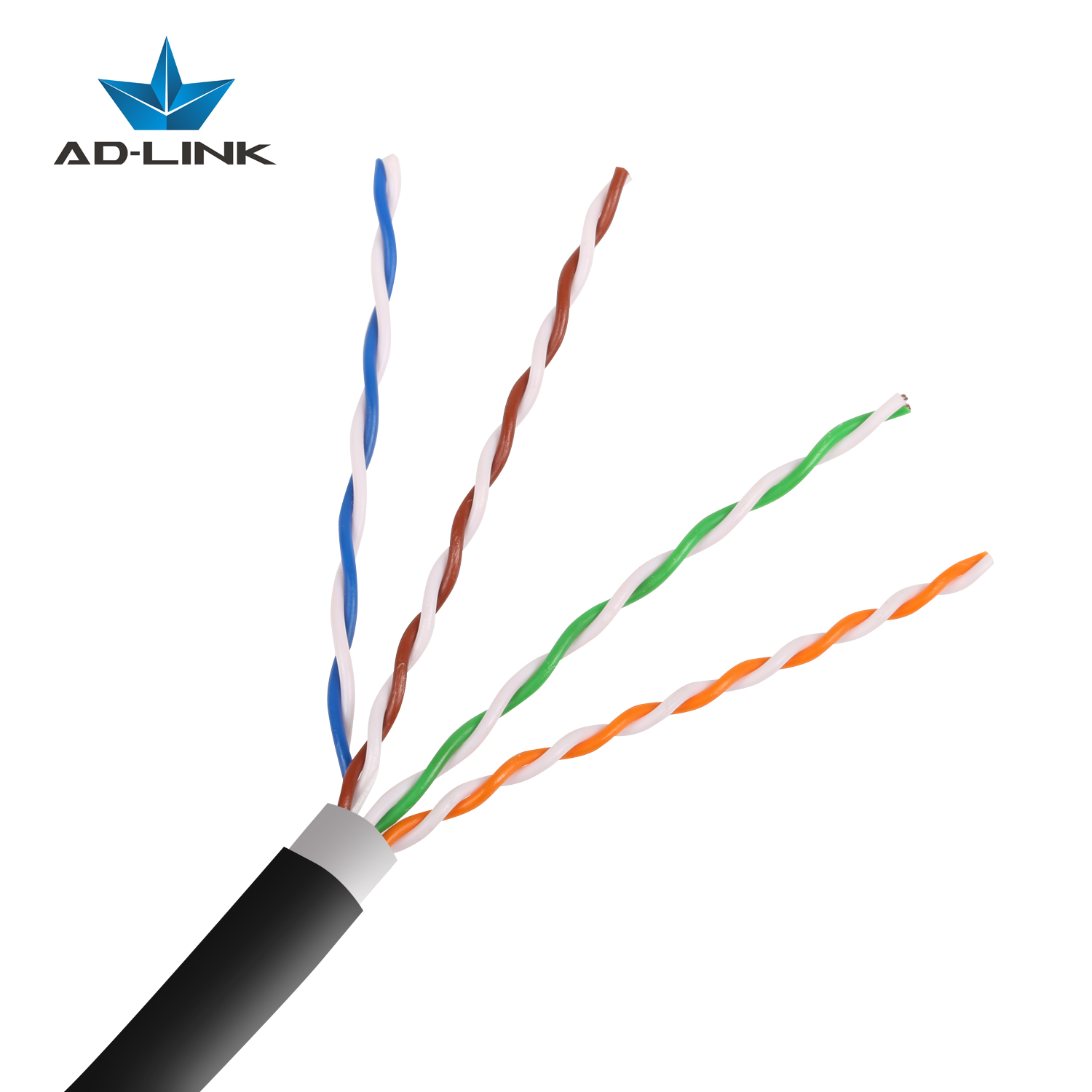

UTP Outdoor CAT6 305 meters
This cable is for high performance data transfer and is designed for outdoor installations and exposure to all weather conditions.
- Inner Conductor thickness : 0.5mm CCA
- Conductor size : 24AWG
- Conductor Material : CCA
- No. of Conductor : 4P
- Insulator Material : HDPE
- Jacket : PVC+HDPE
- Shield : Unshielded twisted pairs
- Filler : PE CROSS
- Insulation Thickness : 0.18mm
- Jacket Thickness : 0.65mm(±0.02mm)
- Stretching Resistance : (max)400N
- Impedance : 100±15%Ω at 1~250MHz
- Transmission Velocity : 66%
- Working Capacitance : 5.4nf/100m
- Insulation Resistance : 10000Mî©.km
- Operating Temperature : ~40 ºC – +70 ºC

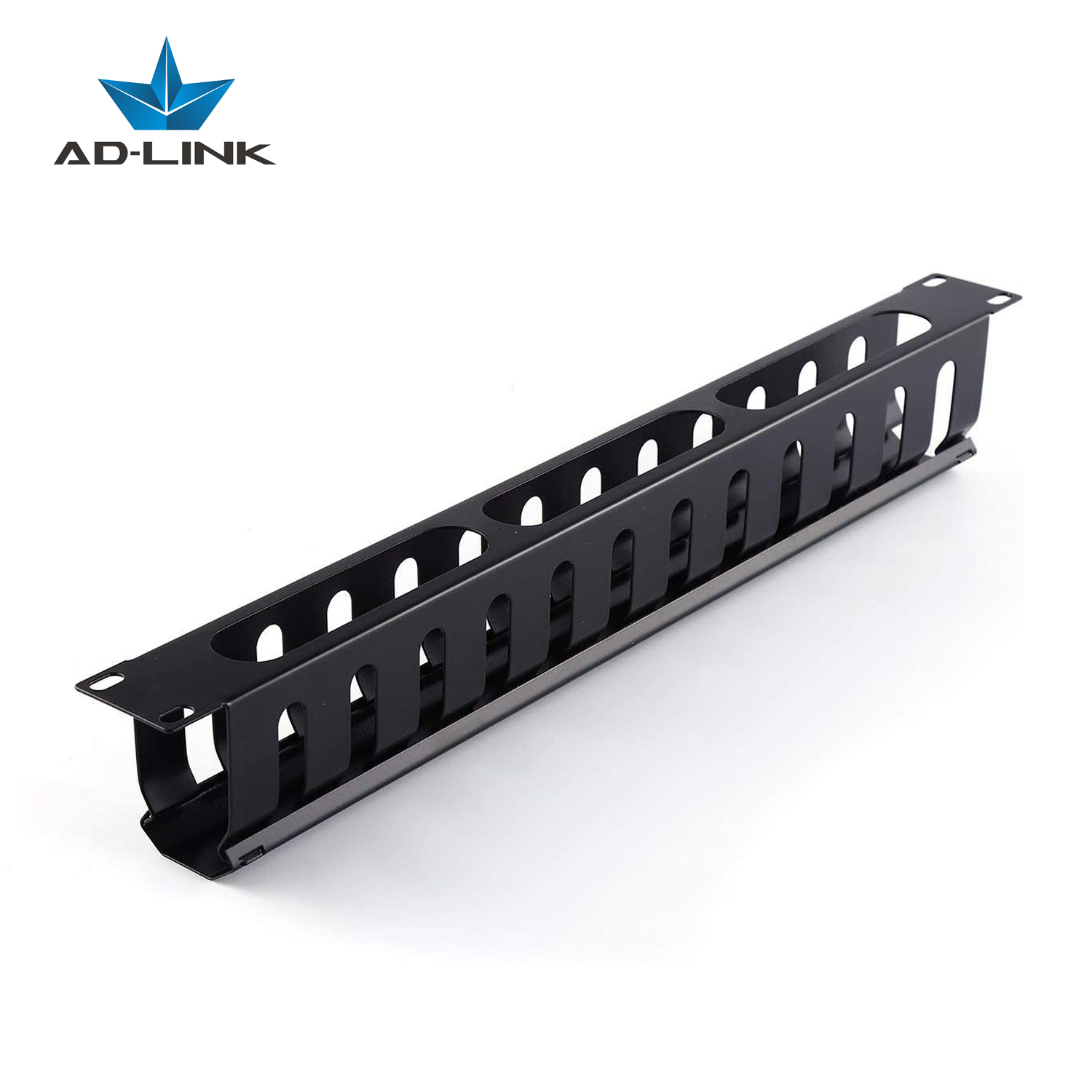

24 Port Metal Cable Manager
1U 19 Inch Server Rack Mount Horizontal Cable management with ALL metal, No plastic, Much stronger!
- 24 Ports Wire Manager
- All Metal with Cover and 4 Pairs of Cagenuts for mounting
- Black Powdercoated
- 1.4 pound per set, Steel panel,Steel cover,Full metal with Baking paint,No plastic!! – 1U 12 lager
slot, Capacity Cable Management With Panel Made of cold rolled steel, Rounded edge without cutting
cable, Durable and will never rust. - Mounting screws included for easy installation, Dimension: 2.8* 1.75 * 19 inch; Fits in any standard 19 rack mount, server cabinet,server shelf and more
