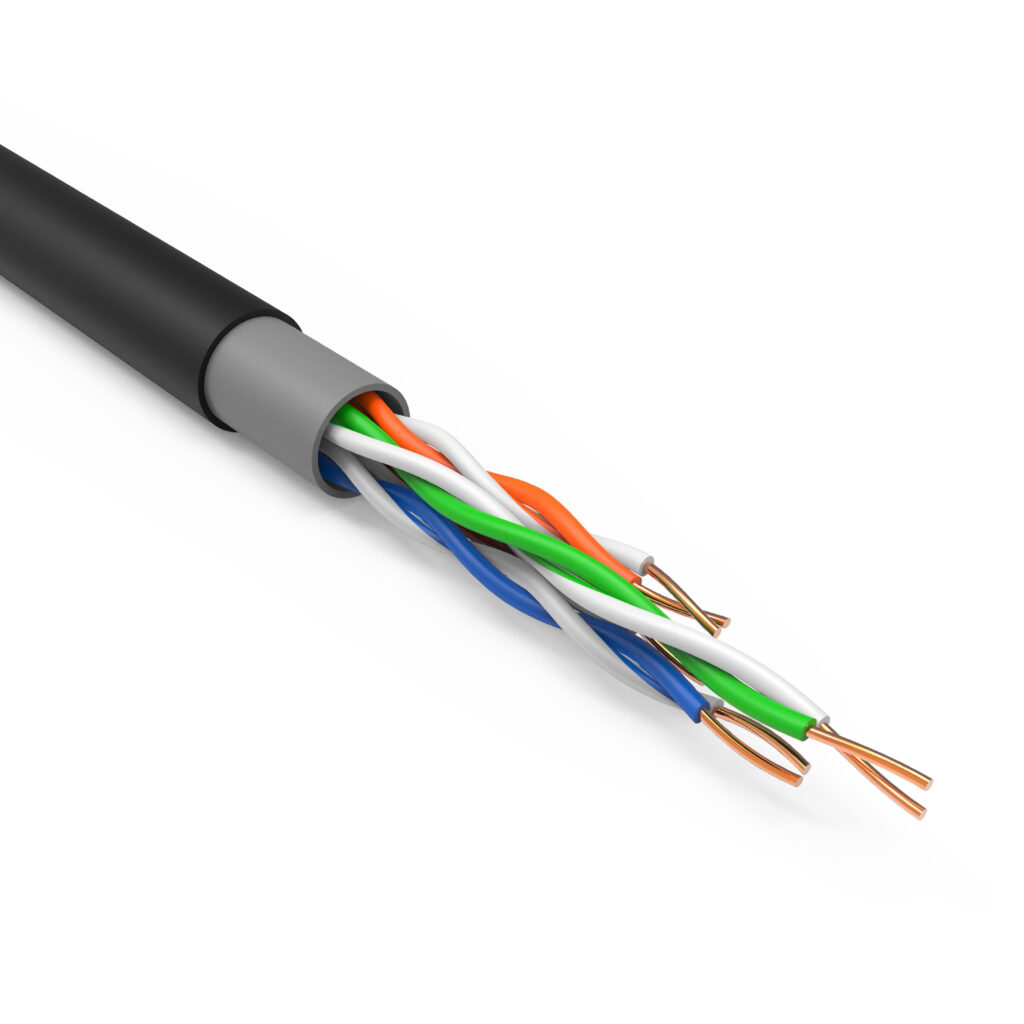

UTP Outdoor CAT6 305 meters
Available Colors:
Share this Product:
This cable is for high performance data transfer and is designed for outdoor installations and exposure to all weather conditions.
- Inner Conductor thickness : 0.5mm CCA
- Conductor size : 24AWG
- Conductor Material : CCA
- No. of Conductor : 4P
- Insulator Material : HDPE
- Jacket : PVC+HDPE
- Shield : Unshielded twisted pairs
- Filler : PE CROSS
- Insulation Thickness : 0.18mm
- Jacket Thickness : 0.65mm(±0.02mm)
- Stretching Resistance : (max)400N
- Impedance : 100±15%Ω at 1~250MHz
- Transmission Velocity : 66%
- Working Capacitance : 5.4nf/100m
- Insulation Resistance : 10000Mî©.km
- Operating Temperature : ~40 ºC – +70 ºC
